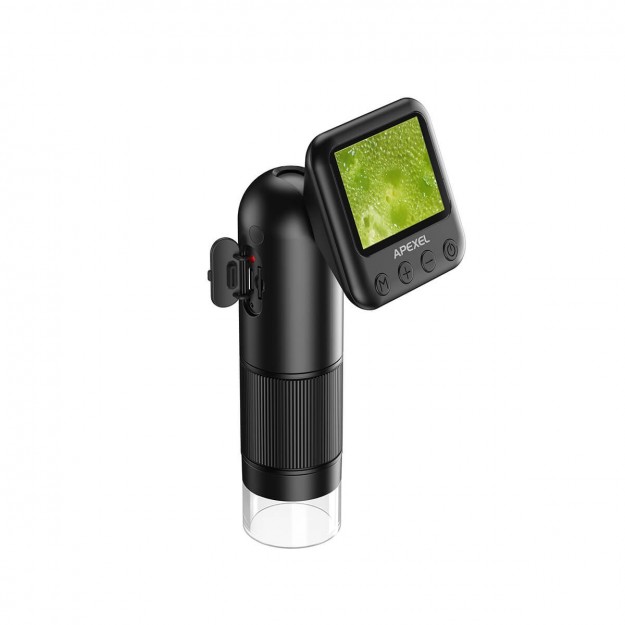

Microscope manual portable with display APEXEL / 400-800X Microscope camera / APL-MS008

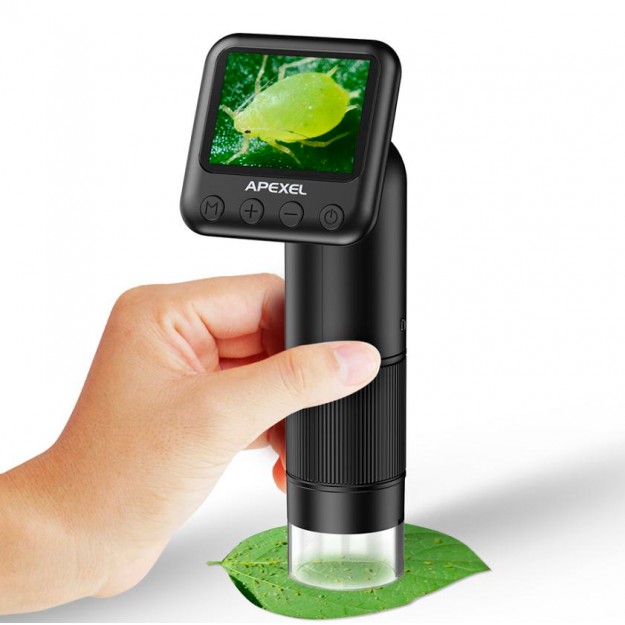

The MS008 Digital Handheld Microscope can be used as a handheld or desktop magnification instrument. it can be a great portable companion in your home, outdoors, lab, school, work or field.

Lightweight and portable for indoor and outdoor use

• HD screen

• Take photos and videos

• HD high magnification

• Digital intelligent adjustment

Characteristics:

Model no. APL-MS008

Main Function of 400X-800X Microscope Camera

Main material Optical glass + ABS

Box size 19x9x7 cm

Box weight 302 g

Black color

Package Color Box

Monitor screen:

Screen size: 2 inches

Screen type: IPS full color

Resolution: 320x240

Head Tilt: 0-75°

Min. Observed objects 3um

Sensor:

Sensor type: CMOS

Sensor Size: 2MP - 1/4″

Resolution: 1280x720

Pixel Size: 3.0 µm

Optics and focus:

Optical zoom: 1.9X

Magnification: 400X-800X on LCD. (NOTE: When connected to a PC or

external monitor, magnification depends on monitor size.)

Digital zoom: 1X / 2X / 3X / 4X / 5X

Focus Type: Manual Focus

Focus Range: ±4mm

Lens construction: 3 PMMA lenses + IR lens

Lighting:

Lighting Type: 6pcs x LED

Light color: white

Light temperature: 6500K-7000K

Memory type Micro SD card, up to 32 GB (max.)

Photo Features:

Interval Mode: Yes

Batch mode: Yes 1/3/5

Timer Mode: Yes 2s/5s/10s

Photography resolution: 1920x1080 in jpg format.

Exposure Compensation: ±3

Quick View: Yes

Date Stamp: Yes

Video shooting capabilities Video format: AVI - 720p@30FPS / VGA@30FPS

Video time: about 300 minutes (32G SD card at 720P@30fps)

Language 20

USB-C interface x 1 5V 1A

Power supply:

700 mAh battery

2.5 hours working time

Application scenes: outdoor research, biology instruments, sample observation, teaching instruments, watch and electronics repair, water quality examination.etc.

In the box:

1x microscope

1x carrying bag

1x Type C charging cable

1x cleaning cloth

1x user manual

1x blister tray

Certificates CE/RoHS/FCC

H.S. Microscope camera lens code - 9011800090
